Concrete and Steel Structures

The overall success of a project depends on its structure – precise measurements and verifying construction as-builts has never been easier.

Recommended Kit

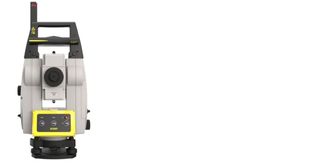

Leica iCON iCR70 Total Station

Kit Includes*:

iCR70 5" R500, iCON total station

GDF323 Tribrach PRO w/o opt. Plummet blk

CCD18, LR-BT Communication Handle black

MPR122, 360° Reflector PRO

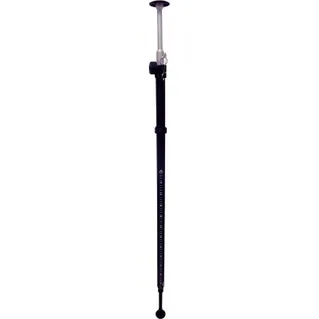

CRP1, Construction Pole, telescopic, cm

CMB10, Tablet Holder for CC80 Tablet

GHT63 Pole clamp for attaching GHT

GVP732, Case for iCON TPS acc. w/ CC8x

GEB222 Battery int. Li-Ion 7.4V/6000mAh

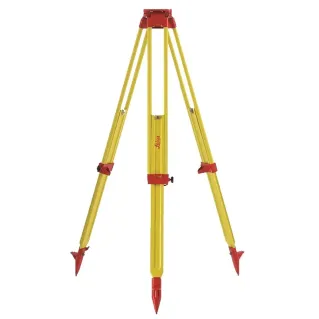

GST120-9 Wooden heavy-duty tripod

GKL311 single Charger Prof 3000

GEV192-4 AC/DC-Adapter for GKL311

CC80-10, Rugged 7" Tablet PC

CA37, Power cord (AUS) for AC/DC Adapter

CSW 201, iCON build field software

* can be customised

Common Tasks;

Upload your CAD drawings straight onto the tablet – no extra software required
Use the Checks app to check drawing scale & offsets are correct
Sketching App allows you to measure existing features of the site and draw in your own design to layout.
Layout of Construction Lines & stakeout of corners using the Prism like a surveyor
Check & establish gridlines on site – most powerful when working on sloped properties
Use Prism to check RLs & Cut/Fill values. Key in the RL you need to find and the tablet will tell you how far up or down you need to go in millimeters
Use Reflectorless to check verticality of framing & walls
Use Survey control, existing gridlines or edge of concrete to setup the total station

Most steel structures are designed in Revit, Tekla, SketchUp or similar software allowing Leica iCON operators to use the 3D IFC models on site to easily stakeout on site. The more complicated the steel structure the better with Lecia iCONs IFC layout Objects App

Recommended Apps

Layout Objects (Required for IFC Models)

Verification

iCON Build Plus – With Cut/Fill app surface models can be used to check sub base pre pour and verify concrete as its poured.

Recommended Accessories

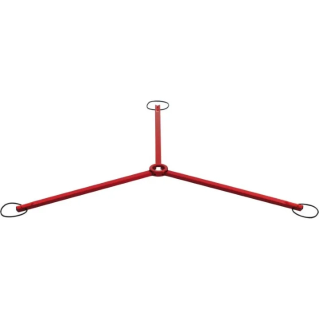

Tripod Star
Most can do without but if you’re setting up the total station on concrete or smooth surfaces its very important that the total station is setup securely, the Leica tripod star is best for this.

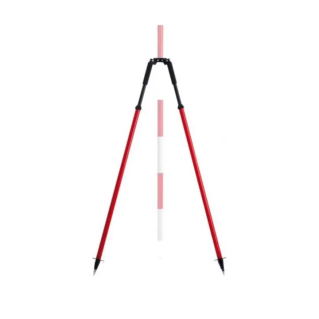

Bipod
Added stability to the prism pole for stakeout

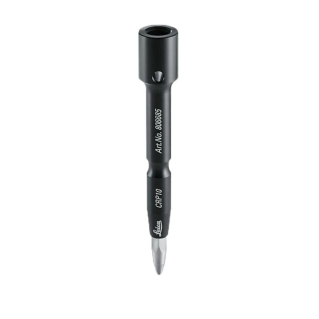

Centerpunch
A pole tip that leaves a mark on the slab after stakeout, efficiency gains

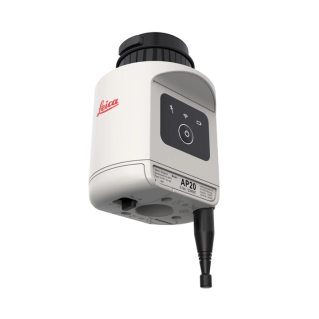

AP20 Pole (only available with iCR70)
The world’s first tilt-compensated total station pole solution for construction and surveying professionals.
