Earthworks, Landscaping and Civil

Large outdoor construction sites mean you get to use GPS technology! It’s never been easier to stakeout and check heights than with Leica iCON.

Recommended Kit

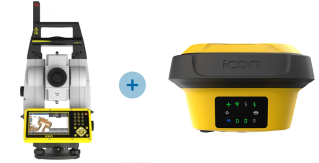

Leica iCON iCR80 Total Station (Capable of Machine Control)

Leica iCON GPS Rovers

Kit Includes*:

iCR80 5" R500, iCON total station

GDF323 Tribrach PRO w/o opt. Plummet blk

CCD18, LR-BT Communication Handle black

MPR122, 360° Reflector PRO

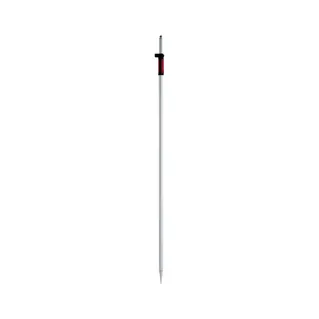

CRP1, Construction Pole, telescopic, cm

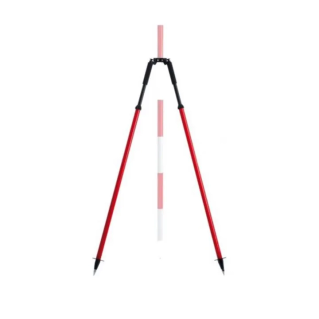

GSR115, Bi-Pod, for all GLS and CRP

CMB10, Tablet Holder for CC80 Tablet

GHT63 Pole clamp for attaching GHT

GVP732, Case for iCON TPS acc. w/ CC8x

GEB222 Battery int. Li-Ion 7.4V/6000mAh

MS1, USB memory stick, 1GB

GST120-9 Heavy Duty Wooden tripod

GKL311 single Charger Prof 3000

GEV192-4 AC/DC-Adapter for GKL311

CC80-10, Rugged 7" Tablet PC

CA37, Power cord (AUS) for AC/DC Adapter

CSW 201, iCON build

* can be customised

Common Tasks;

Performing excavation, grading, and leveling work on a construction site, including roads, foundations, drainage systems, irrigation, landscape design.
Staking out boundaries, cut and fill areas, stakes, pipes and other construction elements.
Check and transfer gridlines on site – Setup stringlines easily on any grade of sloped site
Use digital surface models easily when you coordinate your design to survey control points.
Stakeout utilities, trenches, paths, drainage and more
Use As-built App to measure existing conditions of the site and quickly produce a report on the tablet.
Extensive reporting features with exporting of data as easy as a couple clicks.

Most earthworks and civil projects are designed in software such as AutoCAD Civil 3D or Bentley OpenRoads, allowing Leica iCON operators to use the 3D models on site to easily perform the required tasks.

Recommended Apps

iCON Build Plus – With Cut/Fill app surface models can be used to check sub base pre pour and verify concrete as its poured.

Recommended Accessories

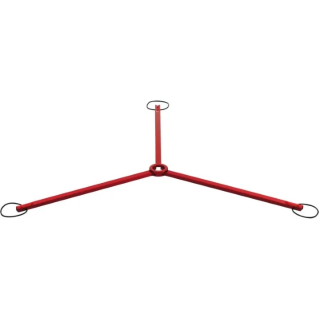

Tripod Star
Most can do without but if you’re setting up the total station on concrete or smooth surfaces its very important that the total station is setup securely, the Leica tripod star is best for this.
