Engineering and Construction Surveyors

Leica iCON construction software is THE software for construction setout. Leica iCON total stations are available in 1” & 2” instruments.

Recommended Kit

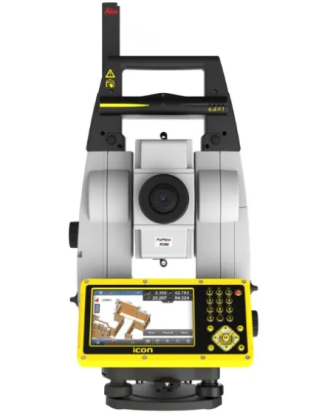

Leica iCON iCR80 Total Station
with Dynamic Lock upgrade

Kit Includes*:

iCR80 5" R500, iCON total station

GDF323 Tribrach PRO w/o opt. Plummet blk

CCD18, LR-BT Communication Handle black

MPR122, 360° Reflector PRO

CRP1, Construction Pole, telescopic, cm

GSR115, Bi-Pod, for all GLS and CRP

CMB10, Tablet Holder for CC80 Tablet

GHT63 Pole clamp for attaching GHT

GVP732, Case for iCON TPS acc. w/ CC8x

GEB222 Battery int. Li-Ion 7.4V/6000mAh

MS1, USB memory stick, 1GB

GST120-9 Heavy Duty Wooden tripod

GKL311 single Charger Prof 3000

GEV192-4 AC/DC-Adapter for GKL311

CC80-10, Rugged 7" Tablet PC

CA37, Power cord (AUS) for AC/DC Adapter

CSW 201, iCON build

* can be customised

Common Tasks;

Setting out of control points and benchmarks for the construction site.
Measuring and verifying the location and elevation of features such as roads, bridges, tunnels, and utilities. Performing general setout of construction designs
Monitoring the stability and movement of structures such as buildings, dams, and retaining walls.
Performing deformation monitoring to detect and measure changes in the shape or position of structures over time.
Using Reflectorless to check the elevation of surfaces, slopes, and grades.
Use As-built App to measure existing conditions of the site and quickly produce a report on the tablet. Extensive reporting features with exporting of data as easy as a couple clicks.

Construction surveyors typically work with complex data sets and models, often generated in software such as AutoCAD, Civil 3D, or Bentley MicroStation. Leica iCON operators can use the data from these software packages on site to perform their required tasks. Surface models can be used with the Cut & Fill Application or 3D IFC models can be used with Layout Objects Application.

Recommended Apps

Layout Objects (Required for IFC Models)

Verification App (scan and create heat maps)

iCON Build Plus – With Cut/Fill app surface models can be used to check sub base pre pour and verify concrete as its poured.

iCON app "2Face & Set" recommended for sets of rounds measurements.

Recommended Accessories

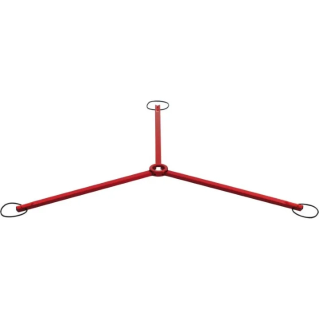

Tripod Star
Most can do without but if you’re setting up the total station on concrete or smooth surfaces its very important that the total station is setup securely, the Leica tripod star is best for this.

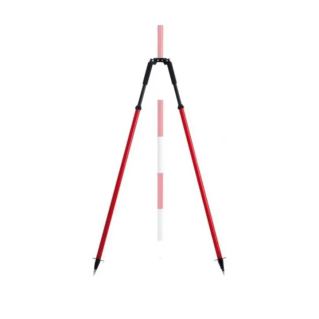

Bipod
Added stability to the prism pole for stakeout

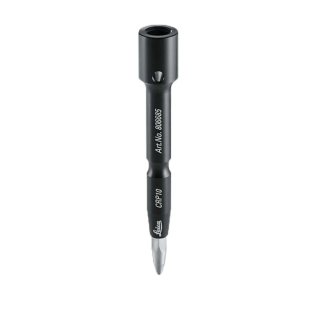

Centerpunch
A pole tip that leaves a mark on the slab after stakeout, efficiency gains

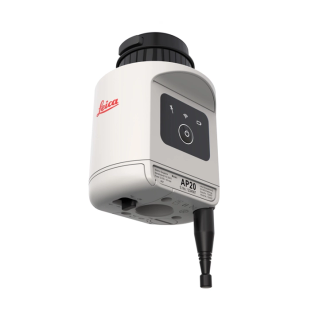

AP20 Pole (only available with iCR70)
The world’s first tilt-compensated total station pole solution for construction and surveying professionals.
