Prefabricated Construction

Layout, locate and manage the whole process with Leica iCON. Click here to see how laser scanners, QR codes, IFC models and verification apps can automate the process

Recommended Kit

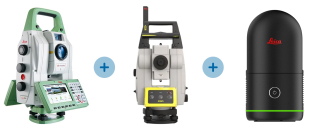

Leica iCON iCR70 Total Station

Leica BLK360 Scanner

Kit Includes*:

iCR70 5" R500, iCON total station

GDF323 Tribrach PRO w/o opt. Plummet blk

CCD18, LR-BT Communication Handle black

MPR122, 360° Reflector PRO

CRP1, Construction Pole, telescopic, cm

CMB10, Tablet Holder for CC80 Tablet

GHT63 Pole clamp for attaching GHT

GVP732, Case for iCON TPS acc. w/ CC8x

GEB222 Battery int. Li-Ion 7.4V/6000mAh

GST120-9 Wooden heavy-duty tripod

GKL311 single Charger Prof 3000

GEV192-4 AC/DC-Adapter for GKL311

CC80-10, Rugged 7" Tablet PC

CA37, Power cord (AUS) for AC/DC Adapter

CSW 201, iCON build field software

* can be customised

Common Tasks;

Scanning and measuring of prefabricated components for quality control and inspection purposes.
Performing site surveys and as-built measurements to ensure accurate placement and installation of prefabricated components.
Using the 3D models of prefabricated components to plan and coordinate construction activities on site.
Performing site layout tasks to mark the location of prefabricated components, including foundations, walls, and roofs.
Using Reflectorless to check the x,y,z position of elements using an IFC Model
Use As-built App to measure existing conditions of the site and quickly produce a report on the tablet.
Extensive reporting features with exporting of data as easy as a couple clicks.

Most prefabricated construction projects are designed in software such as Revit, AutoCAD, or Tekla, allowing Leica iCON operators to use the 3D IFC models on site to easily perform the required tasks.

Recommended Apps

Layout Objects App to use IFC models on site

Verification

iCON Build Plus – With Cut/Fill app surface models can be used to check sub base pre pour and verify concrete as its poured.

Recommended Accessories

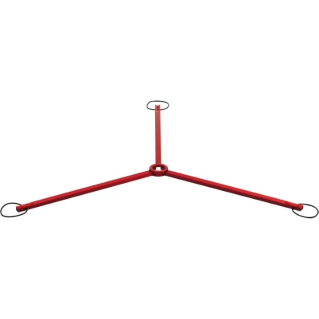

Tripod Star
Most can do without but if you’re setting up the total station on concrete or smooth surfaces its very important that the total station is setup securely, the Leica tripod star is best for this.

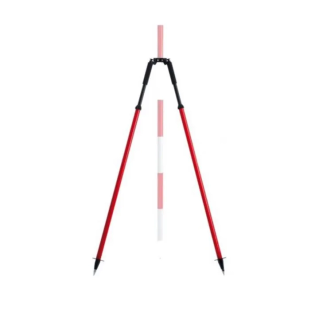

Bipod
Added stability to the prism pole for stakeout

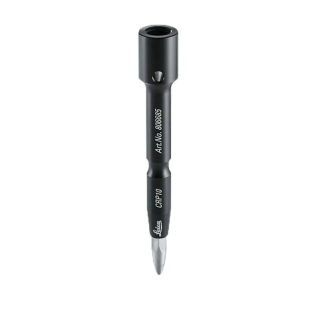

Centerpunch
A pole tip that leaves a mark on the slab after stakeout, efficiency gains

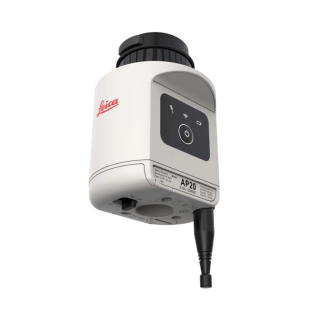

AP20 Pole (only available with iCR70)
The world’s first tilt-compensated total station pole solution for construction and surveying professionals.
