Residential Builders

The construction industry is currently facing a shortage of highly skilled workers with a growing demand for high-quality work. See how you can work faster with Leica iCON.

Recommended Kit

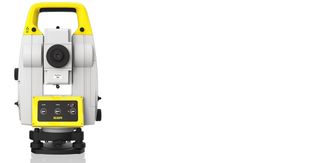

Leica iCON iCT30 Layout Tool

Comes as 9” instrument with 80m range

Kit Includes*:

iCT30 9" R80, iCON layout tool

GDF301 Tribrach without optical plummet

MPR122, 360° Reflector PRO

CRP1, Construction Pole, telescopic, cm

GHT63 Pole clamp for attaching GHT

GVP732, Case for iCON TPS acc. w/ CC8x

GEB221 Battery int. Li-Ion 7.4V/6000mAh

GST101 Wooden tripod w shoulder strap

GKL311 single Charger Prof 3000

GEV192-4 AC/DC-Adapter for GKL311

CC70-10, Rugged 7" Tablet PC

CA37, Power cord (AUS) for AC/DC Adapter

CSW 201, iCON build filed software

CCD18, LR-BT Communication Handle black

* can be customised

Common Tasks

- for managing smaller sites with less people and things in the way - the iCT30 is most common. If you want to upgrade to the iCR70 it could be worth a consideration.
- for managing multiple site drawings at a time and want to use the tablet as your site office - we recommend the iCT30 with larger CC200 tablet

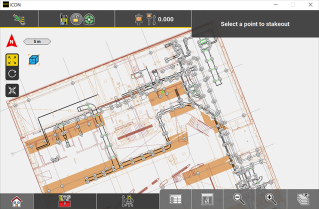

Upload your CAD drawings straight onto the tablet – no extra software required

Use the Checks app to check drawing scale & offsets are correct

Sketching App allows you to measure existing features of the site and draw in your own design to layout.

Layout of Construction Lines & stakeout of corners using the Prism like a surveyor

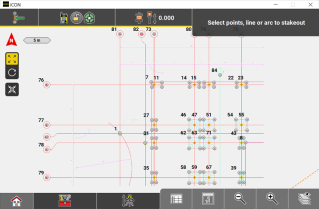

Check & establish gridlines on site – most powerful when working on sloped properties

Use Prism to check RLs & Cut/Fill values. Key in the RL you need to find and the tablet will tell you how far up or down you need to go in millimeters

Use Reflectorless to check verticality of framing & walls

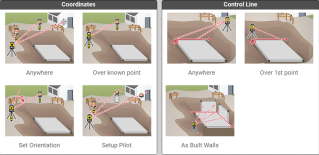

Use Survey control, existing gridlines or edge of concrete to setup the total station

Recommended Apps

Suggested App > Earthworks Package (iCON Build Plus)

Recommended Accessories

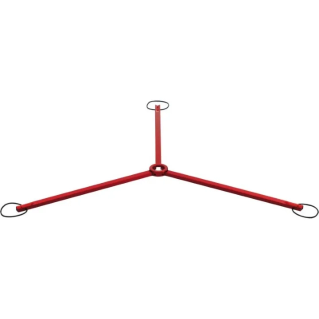

Tripod Star
Most can do without but if you’re setting up the total station on concrete or smooth surfaces its very important that the total station is setup securely, the Leica tripod star is best for this.

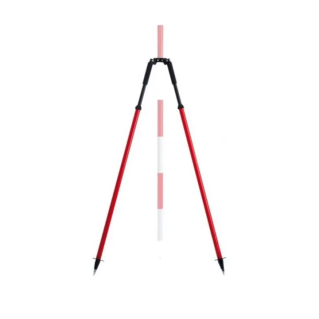

Bipod
Added stability to the prism pole for stakeout

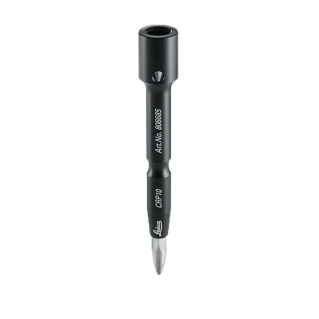

Centerpunch
A pole tip that leaves a mark on the slab after stakeout, efficiency gains

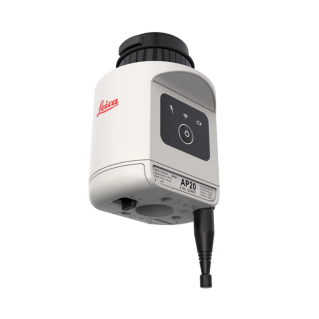

AP20 Pole (only available with iCR70)
The world’s first tilt-compensated total station pole solution for construction and surveying professionals.
