Void Detection GPR

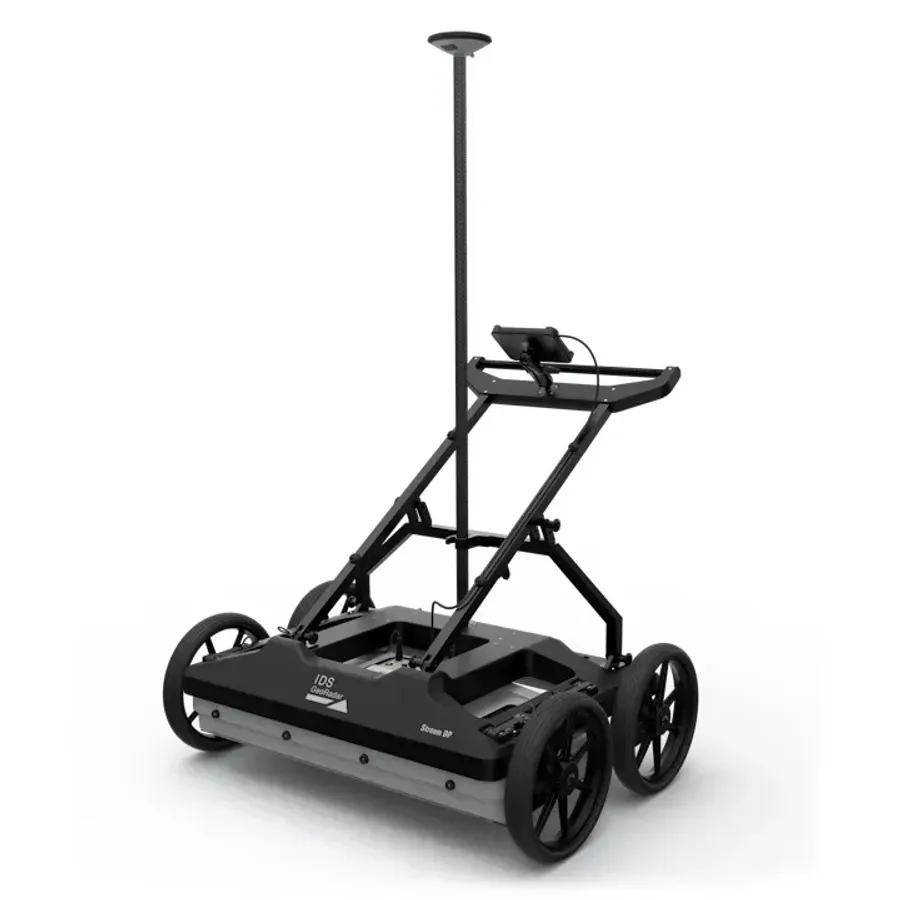

IDS Stream DP Ground
Penetrating Radar

Stream DP is the revolutionary multichannel GPR array solution for real-time 3D mapping of underground utilities and features that overturns the state-of-the-art in underground surveys.

This ground penetrating radar offers unmatched performance maximizing asset detection to a deeper range compared to any other solution available on the market. Ergonomically designed for easy handling and transportation, Stream DP can be efficiently deployed by a single user thanks to its light weight (max. 20kg per part) and its compact size that fits in a standard vehicle (116cmX82cm).

Benefits of Stream DP include:

Asphalt & Rugged configuration: Stream DP is a modular system offering an optimized hardware configuration designed to perform in different environments: from asphalt (pivoting wheels) to rugged terrain (terrain wheels).
Fast Assembly: With Stream DP, surveys are facilitated and successfully conducted by a single operator as the system can be effortlessly transported and assembled in less than 5 minutes directly on the field.
Revolutionary EsT: Equalized scrambled Technology for unparalleled control of the GPR signal, extended depth range and ultra-high resolution;
High Productivity: A massive array (30 channels in double polarization, 19VV + 11HH) for an accurate 3D reconstruction of the underground utility network created in a single scan;
Greater Efficiency: One operator can assemble the system in less than 5 minutes and transport it with a standard vehicle;
Non-Stop Performance: Non-stop surveying performance with low battery power consumption (15W-19W) and hot swap technology for the power supply;
User-Configurable: One solution for different scenarios: Stream DP is configurable both in rugged and asphalt version.
Remote Diagnostics Functionality: Maximize troubleshooting efficiency by transparently sharing diagnostics data via Cloud: from the on-field device to the Customer Support’s desktop.
